6. Controlling the Simulator Vehicle 📱

6-1. Introduction

In the previous chapter, we looked at sample code that demonstrates how to use the Yoriito Signal API. In this chapter, we introduce a sample application that makes practical use of the Yoriito Signal API.

6-2. Understand the App Architecture

The overall architecture of the sample application is shown in the figure below.

Yoriito_RefAppComponentDiagram

GUI Application (Flutter)

This is the front‑end (screen) operated by the user, implemented with Flutter.
In this sample, the GUI Application and the Headless Application are separated into different processes so that the UI framework can be replaced more easily.
However, when using the API, neither Flutter nor this process separation is mandatory.
This architecture is presented simply as one example of how to develop a GUI Application using the Yoriito Signal API.
Target code: yoriito-tutorial/ref_ui

Headless Application (C++)

This is the back-end (non-GUI) application that acts as a BFF (Backend For Frontend), processing requests from the GUI Application.
It calls the Yoriito Signal API and communicates with the GUI Application via gRPC.
It is implemented in C++.
Target code: yoriito-tutorial/ref_app

Yoriito Signal API

This is the vehicle‑oriented API used from the Headless Application.
The API is provided as shared libraries named libyoriito_api_***.so.

Yoriito VISS Server

As a data broker, it relays vehicle signal information from PAL to applications, and forwards actuator control requests from applications to PAL.

PAL

This is the lowest layer, directly interfacing with the platform-dependent I/O and the physical vehicle.
In this tutorial, the 3D car model plays this role.
Target code: yoriito-tutorial/ref_pal

6-3. Understand the App Contents

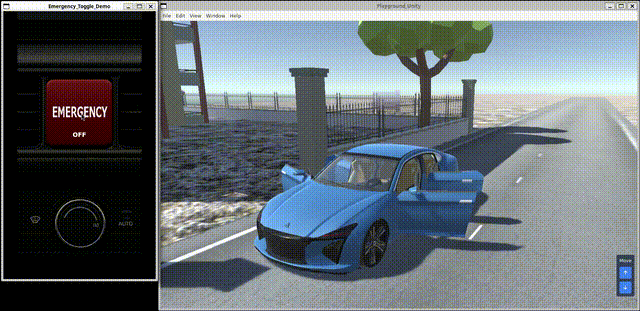

The sample application features an emergency button. When you press the emergency button in the app, windows and doors close, and lights turn on.

emergency_app_v1-20260129-092341

6-4. Verify the App Behavior

Start the simulator (PAL)
1. Move to the ref_pal directory.
```
$ cd /work/ref_pal
```
2. Run the following commands (note that ./init_pal.sh takes about 3–5 minutes).
```
$ npm install
$ ./init_pal.sh
$ npx electron . --no-sandbox
```

Start the Headless Application

Move to the ref_app directory.
```
$ cd /work/ref_app
```

Build the application.

$ cmake -S . -B build
$ cmake --build build -j

Run the application.
```
$ ./build/ref_app
```

Start the GUI Application

Move to the ref_ui directory.
```
$ cd /work/ref_ui
```

Build and run.

$ flutter clean
$ flutter pub get
$ flutter run -d linux

6-5. Troubleshooting

6-5-1. "Address already in use" error appears at startup

Cause
- The gRPC port numbers used by the Yoriito VISS Server or the Headless Application may conflict with those of other applications.
- This is likely to occur if multiple samples or stale processes are still running in the same environment.
Countermeasure
- Check which port numbers are used in this tutorial and make sure there are no other processes using the same ports.

  Port Component

  50052 Yoriito VISS Server (consumer)

  50053 Yoriito VISS Server (producer)

  50055 Headless Application

Port	Component
50052	Yoriito VISS Server (consumer)
50053	Yoriito VISS Server (producer)
50055	Headless Application
